技嘉GA-X99-UD3主板使用说明书pdf格式

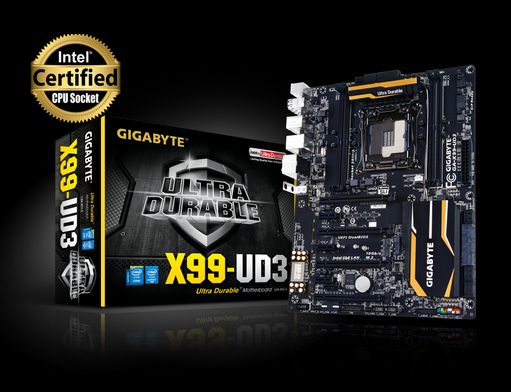

技嘉GA-X99-UD3支持新一代Intel® Core™ i7 极致版处理器，支持4插槽4 信道 DDR4内存架构，4-Way极致显卡带宽输出配置。以下文档是技嘉GA-X99-UD3使用手册，为英文版本，有需要的朋友可立即下载此文档。

温馨提示：

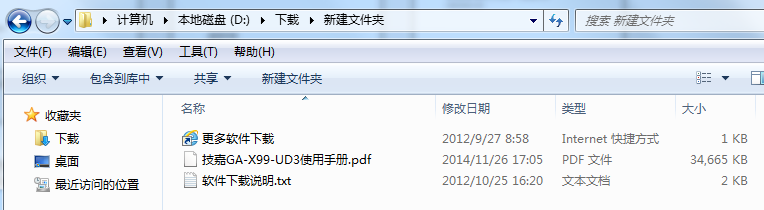

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

技嘉GA-X99-UD3使用手册目录

Box Contents ...................................................................................................................6

Optional Items .................................................................................................................6

GA-X99-UD3 Motherboard Layout ..................................................................................7

GA-X99-UD3 Motherboard Block Diagram ......................................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1Installation Precautions ....................................................................................9

1-2Product Specifications ....................................................................................10

1-3Installing the CPU and CPU Cooler ...............................................................13

1-3-1Installing the CPU ...................................................................................................13

1-3-2Installing the CPU Cooler .......................................................................................15

1-4Installing the Memory .....................................................................................16

1-4-14 Channel Memory Configuration ...........................................................................16

1-4-2Installing a Memory ................................................................................................17

1-5Installing an Expansion Card .........................................................................18

1-6Setting up AMD CrossFire ? /NVIDIA ? SLI ? Configuration ..............................19

1-7Back Panel Connectors ..................................................................................21

1-8Internal Connectors ........................................................................................23

Chapter 2 BIOS Setup ..................................................................................................37

2-1Startup Screen ...............................................................................................38

2-2The Main Menu ..............................................................................................39

2-3M.I.T. ..............................................................................................................42

2-4System Information ........................................................................................54

2-5BIOS Features ...............................................................................................55

2-6Peripherals .....................................................................................................58

2-7Chipset ...........................................................................................................59

2-8Power Management .......................................................................................62

2-9Save & Exit .....................................................................................................64

Chapter 3 Configuring SATA Hard Drive(s) ...................................................................65

3-1Configuring SATA Controllers .........................................................................65

3-2Installing the SATA RAID/AHCI Driver and Operating System .......................77

Chapter 4 Appendix ......................................................................................................81

Drivers Installation .....................................................................................................81

Regulatory Statements ..............................................................................................82

Contact Us ................................................................................................................87

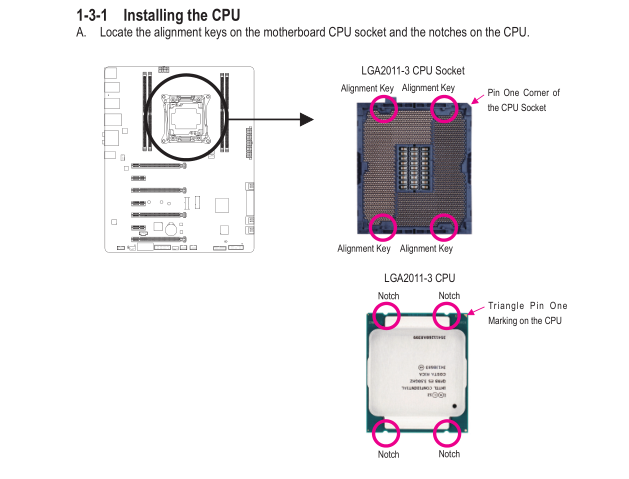

技嘉GA-X99-UD3使用手册——安装cpu

技嘉GA-X99-UD3规格参数

中央处理器(CPU)

支持LGA2011-3插槽处理器：Intel® Core™ i7处理器

L3高速缓存取决于CPU

芯片组

Intel® X99 高速芯片组

内存

4个DDR4 DIMM插槽，最高支持到32 GB

*由于Windows 32-bit操作系统的限制，若安装超过4 GB容量内存时，实际上显示之内存容量将少于实际安装的内存容量。

支持4信道内存技术

支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz

支持non-ECC内存

支持Extreme Memory Profile (XMP)内存

支持RDIMM 1Rx8内存 (non-ECC模式运作)

音效

内建Realtek® ALC1150芯片

支持High Definition Audio

支持2/4/5.1/7.1声道

支持S/PDIF输出

网络

内建Intel® GbE 网络芯片(10/100/1000 Mbit)
