TL-SC3171G摄像机用户使用说明书pdf格式

TL-SC3171G是一款3GPP无线网络摄像机，为夜视型，内置红外发光管，支持10米夜视，支持IEEE 802.11 b/g标准数据传输，配合监控软件可同时管理最多16台设备。以下文档是TL-SC3171G用户手册，为英文版本，有需要的朋友可立即下载此文档。

温馨提示：

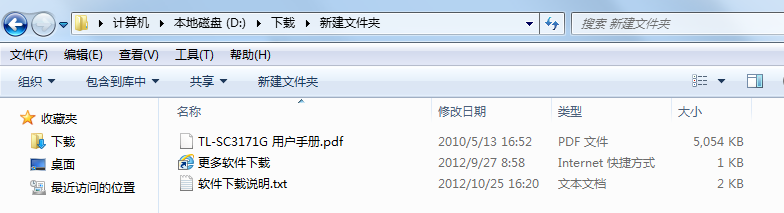

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

TL-SC3171G用户手册目录

Package Contents.........................................................................................................................1

Chapter 1  Minimum System Requirements.............................................................................2

Chapter 2  Physical Overview....................................................................................................3

2.1  Front View......................................................................................................................3

2.2  Bottom view....................................................................................................................3

Chapter 3  Using IP Camera via Web Browser.........................................................................5

3.1  Obtain the IP Address ....................................................................................................5

3.2  Windows Web Browser..................................................................................................7

3.3  Mac Web Browser..........................................................................................................9

Chapter 4  Using IP Camera via Mobile Phone ......................................................................12

4.1  3G Streaming Mobile View Mode.................................................................................12

4.2  3G Web Brower Mobile View Mode..............................................................................14

4.3  2.5G WAP Browser Snapshot Mode ............................................................................16

4.4  2.5G Web Browser Snapshot Mode.............................................................................16

4.5  Mobile View on Windows Mobile 6 Smart Phone.........................................................16

Chapter 5  Configuration of Main Menu..................................................................................20

5.1  Live View......................................................................................................................20

5.1.1  Snapshot..............................................................................................................20

5.1.1  Zoom in/out the image via the monitor window....................................................21

5.1.2  Video play buttons................................................................................................21

5.1.3  Audio buttons.......................................................................................................21

5.2  Setting..........................................................................................................................22

5.3  Client Setting................................................................................................................23

5.3.1  Mode....................................................................................................................23

5.3.2  View Size .............................................................................................................23

5.3.3  Protocol................................................................................................................24

5.3.4  Video Buffer .........................................................................................................24

5.4  Image Setup.................................................................................................................24

5.4.1  Brightness............................................................................................................24

5.4.2  Contrast ...............................................................................................................25

5.4.3  Saturation.............................................................................................................25

5.4.4  Hue ......................................................................................................................25

5.4.5  Default..................................................................................................................25

Chapter 6  Setting-BASIC.........................................................................................................26

6.1  System.........................................................................................................................26

6.1.1  Information...........................................................................................................26

6.1.2  Date/Time.............................................................................................................27

6.1.3  Initialize................................................................................................................28

6.2  Camera ........................................................................................................................29

6.2.1  General................................................................................................................29

6.2.2  MPEG4 ................................................................................................................30

6.2.3  MJPEG.................................................................................................................33

6.3  Network........................................................................................................................34

6.3.1  Information...........................................................................................................35

6.3.2  PPPoE (Point-to-Point Protocol over Ethernet)....................................................37

6.3.3  DDNS (Dynamic DNS).........................................................................................39

6.3.4  UPnP (Universal Plug and Play) ..........................................................................42

6.3.5  Bonjour.................................................................................................................43

6.3.6  IP Notification.......................................................................................................44

6.3.7  Wireless...............................................................................................................46

6.3.8  Messenger ...........................................................................................................49

6.4  Security........................................................................................................................54

6.4.1  Account................................................................................................................55

6.4.2  HTTPS.................................................................................................................56

Chapter 7  Setting-Advance.....................................................................................................58

7.1  FTP client.....................................................................................................................58

7.1.1  General................................................................................................................59

7.1.2  Alarm sending......................................................................................................59

7.1.3  Periodical sending................................................................................................62

7.2  SMTP...........................................................................................................................64

7.2.1  General................................................................................................................64

7.2.2  Alarm sending......................................................................................................67

7.2.3  Periodical sending................................................................................................70

7.3  HTTP event..................................................................................................................72

7.3.1  General................................................................................................................73

7.3.2  Alarm sending......................................................................................................73

7.4  Alarm output.................................................................................................................76

7.4.1  Setting..................................................................................................................77

7.5  Schedule......................................................................................................................79

7.5.1  Setting..................................................................................................................80

7.6  Alarm input...................................................................................................................81

7.6.1  Setting..................................................................................................................81

7.7  Motion detection...........................................................................................................82

7.7.1  Setting..................................................................................................................83

7.8  System Log..................................................................................................................83

7.8.1  Setting..................................................................................................................84

Appendix.....................................................................................................................................85

FAQ..............................................................................................................................................89

TL-SC3171G用户手册——后视图

TL-SC3171G规格参数

接口

1个10/100M以太网RJ45口

1个直流插座

1个复位按钮

1个3.5mm麦克风接口

1个3.5mm耳机接口

1个DI+/DI-/COM/NO接口

感应器

1/4” CMOS感应器

镜头

F2.0, 4.3mm

红外灯

12个

夜视距离

10米

电源输入

12V DC/1A

尺寸

136*75*47mm

使用环境

工作温度: 0℃~40℃

存储温度: -40℃~70℃

工作湿度: 10%~90%RH 无凝结

存储湿度: 5%~90%RH 无凝结
