技嘉GA-X99-Gaming 7 WIFI主板使用说明书pdf格式

技嘉GA-X99-Gaming 7 WIFI支持新一代Intel® Core™ i7 极致版处理器，使用业界领先的IR电源供应模块控制器搭配PowIRstage™ 芯片。以下文档是技嘉GA-X99-Gaming 7 WIFI使用手册，为英文版本，有需要的朋友可立即下载此文档。

温馨提示：

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

技嘉GA-X99-Gaming 7 WIFI使用手册目录

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-X99-Gaming 7 WIFI Motherboard Layout ................................................................7

GA-X99-Gaming 7 WIFI Motherboard Block Diagram....................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions ................................................................................... 9

1-2 Product Specifications................................................................................... 10

1-3 Installing the CPU and CPU Cooler............................................................... 13

1-3-1 Installing the CPU ..................................................................................................13

1-3-2 Installing the CPU Cooler ......................................................................................15

1-4 Installing the Memory .................................................................................... 16

1-4-1 4 Channel Memory Configuration..........................................................................16

1-4-2 Installing a Memory................................................................................................17

1-5 Installing an Expansion Card......................................................................... 18

1-6 Setting up AMD CrossFire™/NVIDIA®

 SLI™ Configuration............................. 19

1-7 Back Panel Connectors ................................................................................. 21

1-8 Installing the I/O Shield.................................................................................. 23

1-9 Onboard Buttons, Switches, and LEDs......................................................... 24

1-10 Changing the Operational Amplifier .............................................................. 26

1-11 Internal Connectors ....................................................................................... 27

Chapter 2 BIOS Setup ..................................................................................................39

2-1 Startup Screen............................................................................................... 40

2-2 The Main Menu.............................................................................................. 41

2-3 M.I.T. .............................................................................................................. 44

2-4 System Information........................................................................................ 56

2-5 BIOS Features ............................................................................................... 57

2-6 Peripherals..................................................................................................... 60

2-7 Chipset........................................................................................................... 62

2-8 Power Management....................................................................................... 65

2-9 Save & Exit .................................................................................................... 67

Chapter3 Configuring SATA Hard Drive(s) ..................................................................69

3-1 Configuring SATA Controllers........................................................................ 69

3-2 Installing the SATA RAID/AHCI Driver and Operating System..................... 81- 5 -

Chapter 4 Drivers Installation .......................................................................................85

4-1 Chipset Drivers .............................................................................................. 85

4-2 Application Software...................................................................................... 86

4-3 Information..................................................................................................... 86

Chapter 5 Unique Features...........................................................................................87

5-1 BIOS Update Utilities..................................................................................... 87

5-1-1 Updating the BIOS with the Q-Flash Utility...........................................................87

5-1-2 Updating the BIOS with the @BIOS Utility........................................................... 90

5-1-3 Using Q-Flash Plus................................................................................................91

5-2 APP Center.................................................................................................... 92

5-2-1 EasyTune................................................................................................................93

5-2-2 System Information Viewer................................................................................... 94

5-2-3 EZ Setup ............................................................................................................... 95

5-2-4 Fast Boot............................................................................................................... 98

5-2-5 Smart TimeLock.................................................................................................... 99

5-2-6 Smart Recovery 2 ............................................................................................... 100

5-2-7 USB Blocker.........................................................................................................102

5-2-8 Ambient LED........................................................................................................103

5-2-9 V-Tuner.................................................................................................................104

5-2-10 Smart Switch........................................................................................................105

5-2-11 Cloud Station Server........................................................................................... 106

5-2-12 Game Controller...................................................................................................112

Chapter 6 Appendix .................................................................................................... 113

6-1 Qualcomm® Atheros Killer Network Manager ..............................................113

6-2 Configuring Audio Input and Output.............................................................114

6-2-1 Configuring 2/5.1-Channel Audio ........................................................................114

6-2-2 Creative Software Suite.......................................................................................114

6-2-3 Configuring S/PDIF Out.......................................................................................118

6-2-4 Configuring Audio Recording ..............................................................................119

6-2-5 Using the Sound Recorder ..................................................................................121

6-3 Troubleshooting ........................................................................................... 122

6-3-1 Frequently Asked Questions ...............................................................................122

6-3-2 Troubleshooting Procedure .................................................................................123

6-4 Debug LED Codes....................................................................................... 125

Regulatory Statements ........................................................................................... 129

Contact Us .............................................................................................................. 135

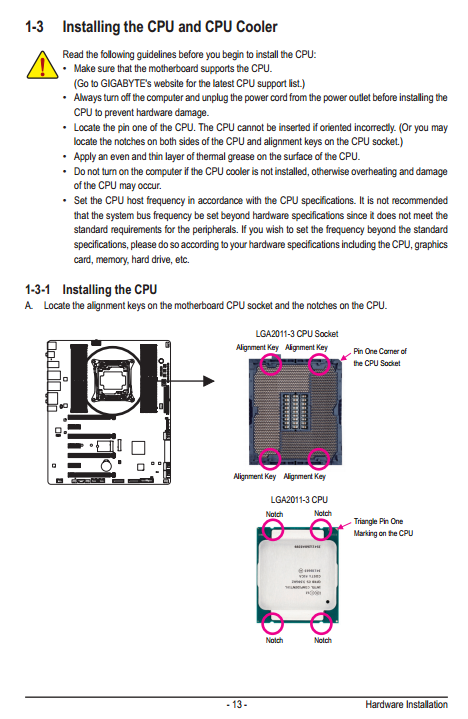

技嘉GA-X99-Gaming 7 WIFI安装cpu

技嘉GA-X99-Gaming 7 WIFI规格参数

中央处理器(CPU)

支持LGA2011-3插槽处理器：Intel® Core™ i7处理器

L3高速缓存取决于CPU

芯片组

Intel® X99 高速芯片组

内存

8个DDR4 DIMM插槽，最高支持到64 GB

* 由于Windows 32-bit操作系统的限制，若安装超过4 GB容量内存时，实际上显示之内存容量将少于实际安装的内存容量。

支持4信道内存技术

支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz

支持non-ECC内存

支持Extreme Memory Profile (XMP)内存

支持RDIMM 1Rx8内存 (non-ECC模式运作)

音效

内建Creative® Sound Core 3D芯片

支持Sound Blaster Recon3Di

内建TI Burr Brown® OPA2134音效放大器芯片

支持High Definition Audio

支持2/5.1声道

支持S/PDIF输出

网络

内建Qualcomm® Atheros Killer E2201网络芯片(10/100/1000 Mbit)(LAN1)

内建Intel® GbE 网络芯片(10/100/1000 Mbit) (LAN2)
